Fantech

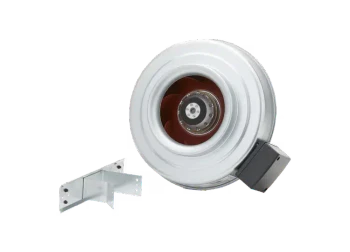

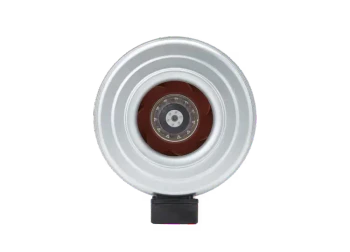

Fantech FG 6 Inline Centrifugal Fan 6 Inch Duct

(No reviews yet) Write a Review
SKU:
3781
UPC:
650737480608
MPN:
FG 6
Condition:
New
Package Weight:
9.40 LBS
Shipping:
Calculated at Checkout
$215.57

Description

Series/Model: FG


Fantech FG 6 Inline Centrifugal Fan 6" Duct

Speed-controllable

Built-in thermal overload protection with automatic reset

Can be installed in any position and outdoors

Maintenance-free and reliable

Mounting bracket and hardware included

Five-year factory warranty

UL Listed, CSA Certified, HVI Certified, Energy Star



Details:

  • Inline Duct Fan
  • Type Centrifugal Inline
  • Size 11-3/8 Inch Diameter x 8-1/8 Inch Height
  • Drive Type Direct Drive
  • Voltage Rating 120 Volt AC 60 Hertz
  • Current Rating 0.58 Amp
  • Number of Phases 1
  • Speed Rating 2703 RPM
  • Power Rating 70 Watt
  • Air Flow Rate 305 CFM
  • Housing Material Heavy Gauge Sheet Metal
  • Housing Finish Galvanized
  • Duct Shape Round
  • Duct Size 6 Inch
  • Application Indoor/Outdoor, Residential and Commercial
  • Approval UL (Canada and US), HVI, AMCA
  • Temperature Rating 140 Deg F
  • Enclosure Rating IP44
  • Insulation Class B
  • Duct Connection Type Circular
  • Includes Mounting Bracket, Hardware
  • Designed for installation on circular ducts for supply or exhaust air in a variety of commercial or residential applications including renovation and new construction projects
  • The first-in-class airtight fan housing ensures leak-free operation
  • Suggested applications range from general supply or exhaust to dedicated spot ventilation in both residential and commercial settings
  • The fan controlled via a solid-state speed controller WC15 or push-button 60 min timer FD60EM
  • Airflow 285 cfm at 0" Ps
  • Suitable for indoor/outdoor installations
  • Thermally protected from overheating
  • Mounting bracket and hardware included
  • 5 Year factory warranty
  • Energy Star® Rated

Safety Information


California Proposition 65 Warning SymbolWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
This product and other products on our site may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm. Visit the state of California's website to learn more about Proposition 65.

Many of our items should be installed by a trained HVAC technician. With purchase of this item, you are agreeing to follow any and all safety guidelines provided by the manufacturer and to have the item installed by a trained HVAC technician as necessary. Your professional installer assumes all responsibility for injury or property damage that may result.

View AllClose

Warranty & Returns

The items we offer on our website are professional grade products that are designed and built to be installed by licensed, professional tradesmen. Because of the professional install these products carry a longer warranty, different than found in similar products offered by big box stores for do it yourselfers. We encourage you to be a licensed HVAC contractor or to hire a Licensed HVAC contractor to be sure you can truly get the manufacturer's warranty. Many manufacturers will request a copy of the contractor license or a bill of install to start the warranty procedure. HVAC Wholesale Direct is a distributor and is not responsible for labor claims, supplies or refrigerant cost recovery or rejected manufacturer's warranty due to misapplication or for operating outside the terms of a manufacturer's warranty.

box graphic

30-Day Hassle-Free Return Policy
After 30 days, we will still accept returns but with a 15% Restocking Fee for up to 90 Days

Return terms and conditions: Item(s) must be new and unused in the original packaging with all original documentation included.

Upon receipt of the returned item(s) an inspection will be performed to ensure the above terms and conditions have been met.
If they have, we will issue a refund back to the original method of payment used at time of sale, less our original cost of shipping. If the terms and conditions have not been met, we will contact you to arrange for the items to be returned to you at your expense.

You are responsible for return shipping costs.
We recommend you insure the shipment against loss or damage. Any return shipping damage claims will be your responsibility.


Return Instructions - Non Damage Items

You must ...

  • Request a return via our Contact Us link
  • Include your order / invoice number
  • Provide a reason for your return request
  • State if you want a replacement or a refund

Once we receive your request, we will respond with either an authorization to return, or deny the request with an explanation. If the request is authorized, we will also provide instructions on how and where to return the purchase. Upon receipt of the item(s) back, an inspection will be performed to determine if the item(s) can be returned to the shelf or not. If they can, we will comply with your request for a replacement item(s) or a refund. Refunds will always be issued back to the method of payment used for the original purchase. If the item(s) can not be returned to the shelf for resale, they will be returned to you at your expense.

Items Damaged During Shipment

Occasionally, items are damaged in shipment. It is the buyer's responsibility to inspect for damage upon receipt from the shipping / delivery company. It's best to refuse the delivery and notate the damage on the driver's bill. It's always best to take a picture and let us know, so we can make arrangements to get you a replacement as quickly as possible. Once you accept the shipment, any damage claims at that time are between the delivery company and the buyer. We inspect every item / shipment for damage prior to tendering the items to the delivery company.

Defective Items

If your reason for returning the item in the instructions above is due to a manufacturer defect, you must state that in your return request, as it will affect the instructions for returning the item. Many manufacturers have specific procedures that must be followed in order to process these claims. A detailed description of the defect must be provided. You may be asked to provide additional information such as, a service ticket showing the diagnosis from a licensed HVAC professional, pictures of the defect, etc. These additional pieces of information will help to expedite the process in many cases. Some manufacturers will not proceed without that additional information.

HVAC Wholesale Direct vendor network is made up of some of the finest manufactures of HVAC products. We will be here to assist you. We however, do not have any control over the manufacturers and their warranty practices and make no claim on honoring warranty on behalf of any manufacturer. HVAC Wholesale Direct is not responsible for shipping or freight charges for any warranty claims made that we are helping to facilitate. We issue credit after we receive credit from the manufacturer.

Electrical Parts

Electrical parts, such as capacitors, contactors, transformers, and thermostats are NON-RETURNABLE. HVAC Wholesale Direct is not liable for improper selection and/or installation of electrical parts and controls.

At the end of the day we are people doing business with people in a modern environment. We want you to be happy with your experience with our company. We promise to work with all of our customers, within good reason, to resolve any conflicts, whether defective or mis-ordered to your satisfaction.

View AllClose

Specifications

Type:
Centrifugal Inline
Size:
11-3/8 Inch Diameter x 8-1/8 Inch Height
Drive Type:
Direct Drive
Voltage Rating:
120 Volt AC 60 Hertz
Current Rating:
0.58 Amp
Number of Phases:
1
Speed Rating:
2703 RPM
Power Rating:
70 Watt
Air Flow Rate:
305 CFM
Housing Material:
Heavy Gauge Sheet Metal
Housing Finish:
Galvanized
Duct Shape:
Round
Duct Size:
6 Inch
Application:
Indoor/Outdoor, Residential and Commercial
Approval:
UL (Canada and US), HVI, AMCA
UOM:
ea
