Contactors, Transformers & Relays

Bi-metal Manual Reset Fire StatDetails:Ducted Air Distribution System Manual Reset Fire Stat SwitchItem Manual Reset Fire Stat SwitchMaterial Bi-MetalUsed On Item Ducted Air Distribution SystemThis Bi-Metal Switch is Used as a Manual ResetWhen...

Series/Model: Series DPContactor 30A 24V 1.5 Pole Silver cadmium oxide contacts CSA approved UL® approved Temperature range: -40°F to 150°F (-40°C to 65°C)Compact universal design allows replacement of the most common brands...

Series/Model: Series DPContactor 30A 24V 2 Pole Silver cadmium oxide contacts CSA approved UL® approved Temperature range: -40°F to 150°F (-40°C to 65°C)Compact universal design allows replacement of the most common brands. ...

Series/Model: Series DPContactor 40A 24V 2 Pole Silver cadmium oxide contacts CSA approved UL® approved Temperature range: -40°F to 150°F (-40°C to 65°C)Compact universal design allows replacement of the most common brands. ...

Series/Model: Series DPContactor 40A 24V 3 Pole Silver cadmium oxide contacts CSA approved UL® approved Temperature range: -40°F to 150°F (-40°C to 65°C)Compact universal design allows replacement of the most common brands. ...

Series/Model: Series 902Fan Relay 90294 General Purpose Fan Relay used on many HVAC/R and Industrial applications. 120 VAC control circuit, 1 Amp load current, SPDT (single pole double throw). Typically used on control circuitsDetails:General Purpose...

Series/Model: Series 902Fan Relay 90292 General Purpose Fan Relay used on many HVAC/R and Industrial applications. 240 VAC control circuit, 4 Amp load current, SPNO (single pole normally open).Details:General Purpose Fan RelayType AC OperatedContact...

Series/Model: Series 902Fan Relay 90380 General Purpose Fan Relay used on many HVAC/R and Industrial applications. 24 VAC control circuit, 13 Amp load current, NO/NC (1 normally open, 1 normally closed)Details:General Purpose Fan RelayType AC...

Series/Model: Series 902Fan Relay 90293 General Purpose Fan Relay used on many HVAC/R and Industrial applications 24 VAC control circuit, 1 Amp load current, SPDT (single pole double throw). Typically used on control circuitsDetails:General Purpose Fan...

Series/Model: Series 902Fan Relay 90290 General Purpose Fan Relay used on many HVAC/R and Industrial applications. 24 VAC control circuit, 5 VA coil inrush / 3 VA max Sealed. SPNO (single pole normally open)Details:Fan RelayType AC OperatedContact...

Series/Model: QHeat Sequencer Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-20 seconds, and off at 40-110 seconds...

Series/Model: QHeat Sequencer Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 2 switches & turns on at 30-90 seconds, and off at 1-30 seconds...

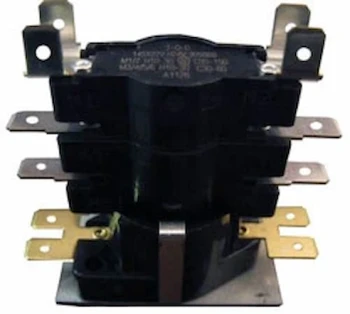

Series/Model: QHeat Sequencer Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 3 switches which turn on at 10-30 and off M1-M2 at 90-150,...

Series/Model: DPHoneywell DP1030A5014 24 Vac 1 Pole Deluxe Definite Purpose Contactor Meets ARI-780 Standard at started ratings (500,000 cycle mechanical life, 200,000 cycle electrical life and 10,000 cycle recycle life); the most demanding ARI...

Series/Model: Series DPHoneywell DP2030A1004 24 Vac 2 Pole Definite Purpose Contactor Silver cadmium oxide contacts provide long life under demanding duty cycles Low profile design allows for more wiring room Multiple mounting holes and slots for...

Series/Model: Series DPHoneywell DP2040A1003 24C Vac 2 Pole Contactor Silver cadmium oxide contacts provide long life under demanding duty cycles Low profile design allows for more wiring room Multiple mounting holes and slots for convenient,...

Series/Model: Series DPHoneywell DP3030B5003 Contactor Meet the most demanding ARI requirement, ARI-780 Standard. Class H high temperature insulated coils are standard on 3 pole contactors. Shrouded coils on 3 pole (25A to 60A) models protect the coil...

Series/Model: DPHoneywell DP3040A5003 24 Vac 3 Pole Contactor Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors Moisture proof epoxy is used to encapsulate the 3 pole 75A throught 120A coils Multiple...

2.75" Track Mount Pilot Relay 15 Amp SPST + Override with 24 Vac/dc CoilDetails:Pilot Control RelayType AC/DC OperatedContact Configuration SPSTContact Voltage Rating 125/250 Volt ACContact Current Rating 15 Amp at 125 Volt AC (Resistive)Coil Voltage 24...

Enclosed Pilot RelayDetails:Pilot RelayType EnclosedContact Configuration SPDTContact Voltage Rating 277 Volt AC/28 Volt DCContact Current Rating 10 Amp at 277 Volt AC (Resistive Load), 10 Amp at 28 Volt AC (Resistive), 480 Volt Amp at 240 to 277 Volt AC...

Enclosed Pilot Relay 10 Amp 2 SPDT with 10-30 Vac/dc/120 Vac CoilDetails:Pilot RelayType AC/DC OperatedContact Configuration SPDTContact Voltage Rating 277 Volt AC, 28 Volt DCContact Current Rating 10 Amp at 277 Volt AC, 10 Amp at 28 Volt DC (Resistive...

Series/Model: 903XSwitching Fan Relay 90341 Series Relay is a DPDT (double pole, double throw) relay used for various HVAC/R and Industrial applications. 120 VAC control, maximum 12 Amp resistive / 15 Amp inductive loadsDetails:General Purpose Switching...

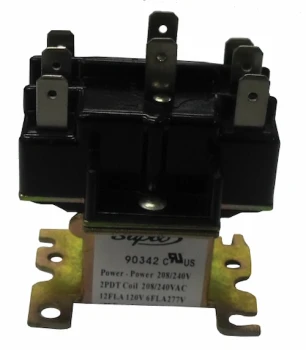

Series/Model: 903XSwitching Fan Relay 90342 Series Relay is a DPDT (double pole, double throw) relay used for various HVAC/R and Industrial applications. 240 VAC control, maximum 12 Amp resistive / 15 Amp inductive loadsDetails:General Purpose Switching...

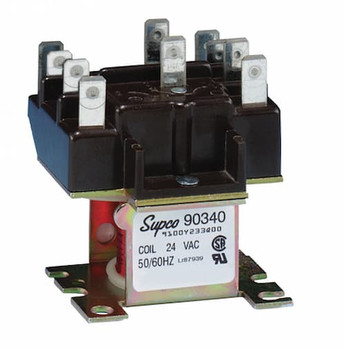

Series/Model: Series 903Switching Fan Relay 90340 Series Relay is a DPDT (double pole, double throw) relay used for various HVAC/R and Industrial applications. 24 VAC control, maximum 12 Amp resistive / 15 Amp inductive loadsDetails:General Purpose...

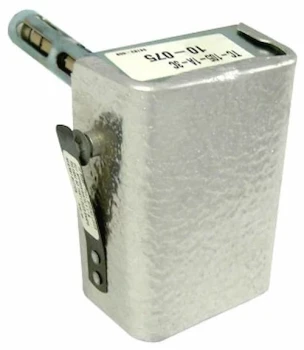

Series/Model: Series TCDetails:High Temperature Limit Control SwitchType Adjustable, 5 Inch ElementTemperature Range 100 to 250 Deg FMaximum Temperature Rating 250 Deg FContact Rating 120/240 Volt AC, 9.8/4.9 AmpEnclosure Material Bi-MetalApproval...

Transformer 100 VA 480/277/240/120/24Vac, Circuit Breaker, Foot and Single Threaded Hub MountDetails:TransformerType Class 2Primary Voltage 120/208/240/277/480 Volt AC at 50/60 HertzSecondary Voltage 24 Volt AC at 50/60 HertzPower Rating 100 Volt...

Transformer 50 VA 480/277/240/208/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub MountDetails:TransformerType Class 2Primary Voltage 120/208/240/277/480 Volt AC 50/60 HertzSecondary Voltage 24 Volt AC 50/60 HertzPower Rating 50 Volt...

Transformer 75 VA 480/240/208/120/24Vac, Circuit Breaker, Foot and Single Threaded Hub Mount and Side OpeningDetails:TransformerPrimary Voltage 480/240/208/120 Volt ACSecondary Voltage 24 Volt ACPower Rating 75 Volt AmpMounting Foot and Hub MountOver...

Series/Model: Series SXTTransformer 40A 120/208/240 VAC Foot mount Output from 20 - 100 VA A multitude of primary and secondary combinations Circuit breakers and fuses where noted Secondary Voltage: 24VACDetails:Control TransformerPrimary Voltage...

Series/Model: Series SXTTransformer 50A 120/208/240 VAC Multi-Mount Output from 20 - 100 VA A multitude of primary and secondary combinations Circuit breakers and fuses where noted Secondary Voltage: 24VACDetails:Control TransformerPrimary Voltage...

Series/Model: Series SXTTransformer 75A 120/208/240/480 VAC Foot mount Output from 20 - 100 VA A multitude of primary and secondary combinations Circuit breakers and fuses where noted Secondary Voltage: 24VACDetails:Control TransformerPrimary...
